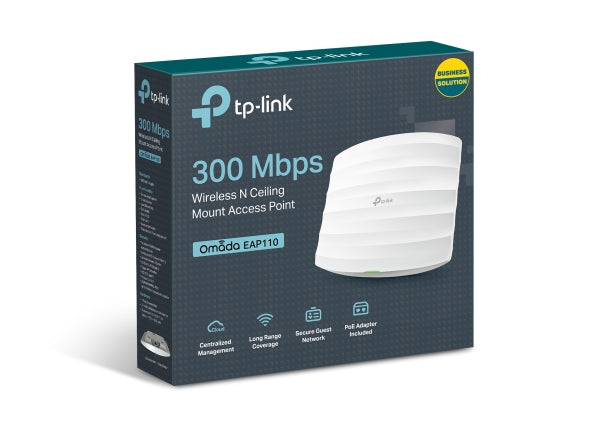

TP-Link EAP110 300Mbps Wireless N300 Ceiling Mount Access Point 1x1Gbps RJ45 PoE 1x Console Port 2x4dBi Omni Internal Antenna EAP Controller Software enables administrators to easily manage hundreds of EAPs Supports passive PoE for convenient installation up to 100meters Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling Captive portal provides one convenient method of authentication for Wi-Fi guests Multi-SSID divides multiple wireless networks for different users Enterprise class Wi-Fi security help to decrease network security threats HARDWARE FEATURES Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE） Button Reset Power Supply 24VDC / 1A Passive PoE Supply Power Consumption 7.7W Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm) Antenna Type Internal 2* 3dBi Omni Mounting Ceiling /Wall Mounting (Kits included) Physical Security Lock Kensington Lock Slot Watch Dog Yes WIRELESS FEATURES Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4-2.4835GHz Signal Rate 11n_ Up to 300Mbps(dynamic) 11g_ Up to 54Mbps(dynamic) 11b_ Up to 11Mbps(dynamic) Reception Sensitivity 300M_ -71dBm@10% PER 150M_ -75dBm@10% PER 54M_ -78dBm@10% PER 11M_ -93dBm@8% PER 6M_ -92dBm@10% PER 1M_ -96dBm@8% PER Wireless Functions Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK Transmission Power CE_ <20dBm FCC_ <26dBm MANAGEMENT EAP Controller Software Yes Email Alerts Yes
